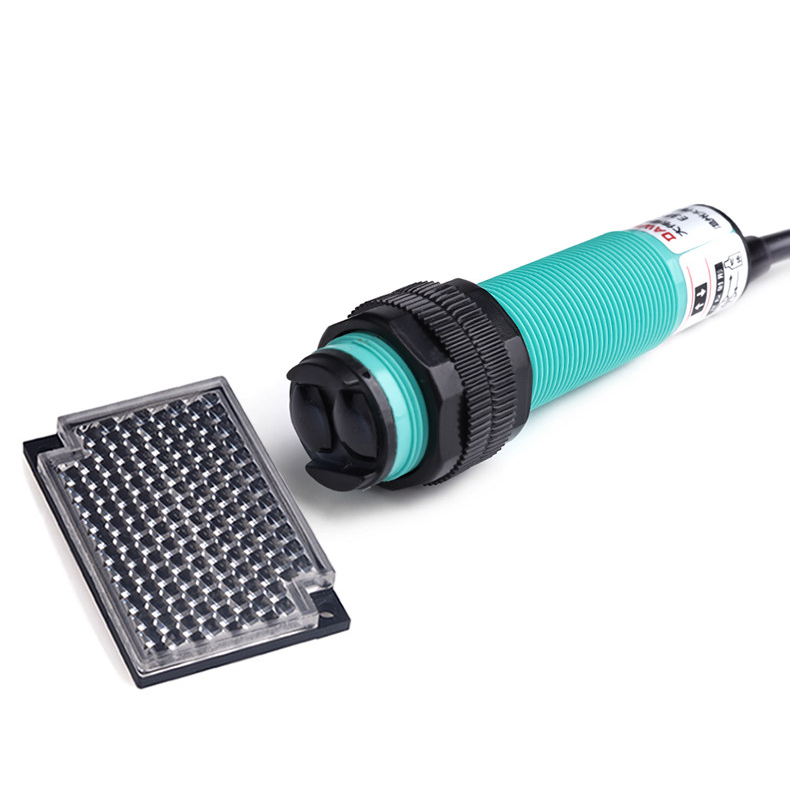

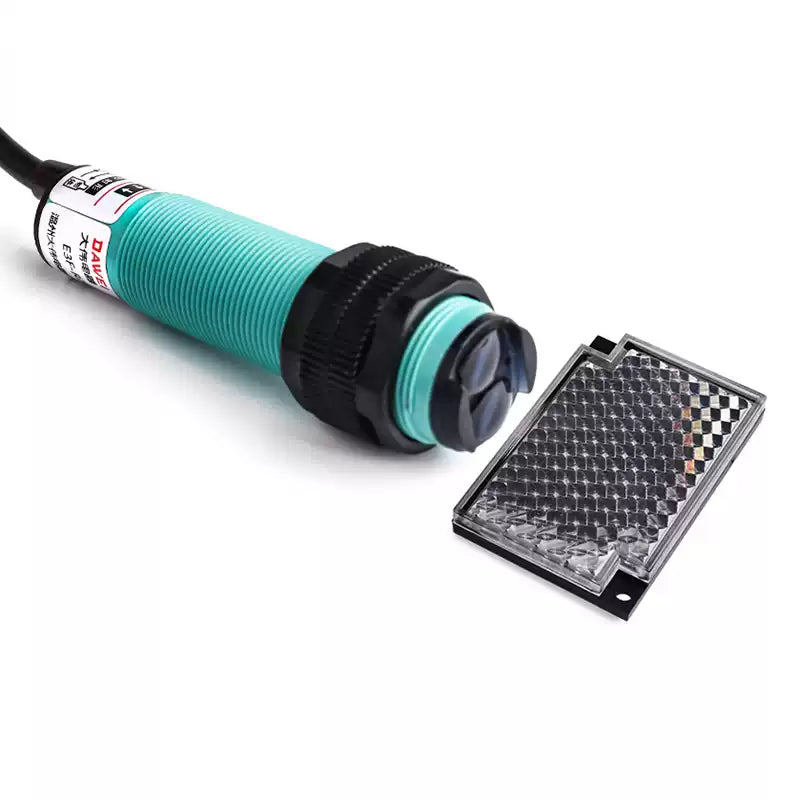

Diffuse Photoelectric Sensor Switch (200cm Range)(BE115)
$20.00 USD
📦 IN STOCK: Ready to ship within 24 hours.
💡 IDEAS & APPLICATION
This sensor is perfect for "Proximity Triggers." For example, you can hide it within a mural or wall painting. When a player steps forward to inspect the art, the sensor detects them and triggers a surprise effect—like a voiceover clue or a sudden Jump Scare sound!
- Precise Direction: Unlike motion sensors (PIR) that detect a wide area, this sensor uses a straight-line infrared beam.
- How it Works: It only triggers a signal when a person or object is detected directly in front of it, within a 200cm range. This prevents accidental triggers from players simply walking past the room.
📐 SPECS & SIZE
| Parameter | Value |
|---|---|
| Voltage | 6V~36V DC |
| Output Current | 300mA |
| Trigger Distance | 200cm |
| Mounting Hole | Ø 18mm |
| Operating Temperature | -25°C to +80°C |
*Please check the mounting hole size before drilling.
⚡ WIRING GUIDE
Easy Integration. For most standard escape room controllers, we recommend the NPN type (Negative Output).
- Brown Wire: +12V Power (VCC)
- Blue Wire: GND (0V)
- Black Wire: Signal Output (Trigger)
⚠️ Ensure power is OFF before wiring.
